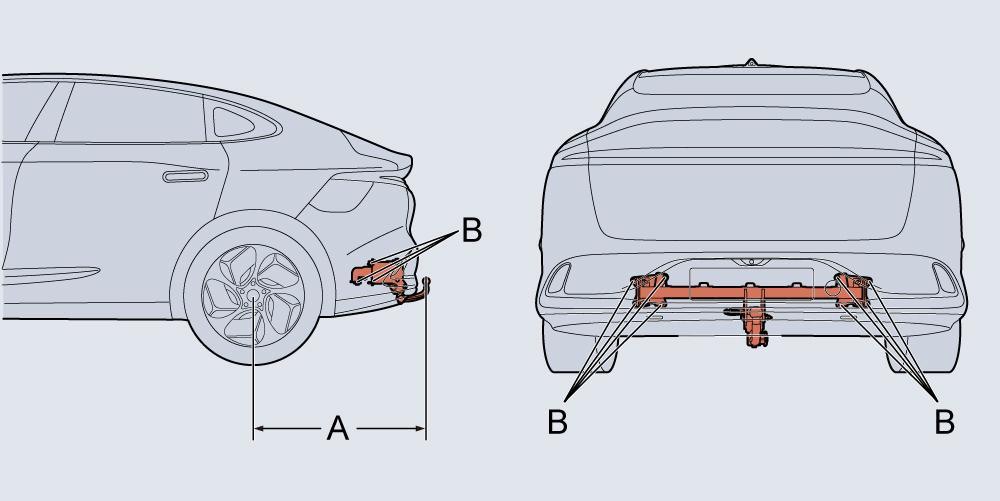

Towing parameters
Chapter 9 · Manual page 352
| Item, Units | Parameters |
|---|---|
| Towing limit unbraked, kg | 750 |
| Towing limit braked, kg | 1500 |
| Towing hitch load, kg | 75 |
| Wheel centre to centre of tow ball A, mm | 1070 |
| Towing device mounting points | B |
When towing a trailer, the vehicle speed MUST not exceed 62mph (100km/h).
Prior to towing a trailer, please check the rear tyre pressures, inflate to at least 20 kPa ( 0.2 bar) above the recommended pressure. DO NOT allow the tyre pressure to exceed 300 kPa ( 3.0 bar), this can be dangerous.
