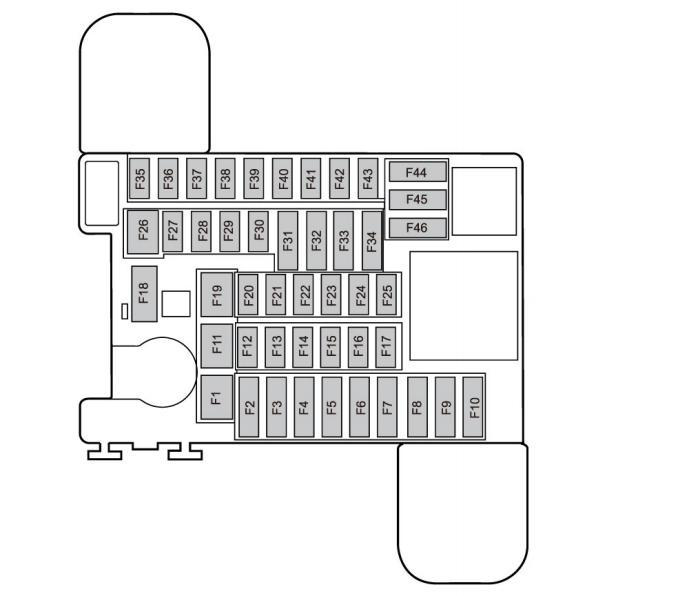

Loadspace Fuse Box

Fuse Check or Replacement

1. Turn off the Start switch and all electrical appliances, and disconnect the negative battery cable.
2. Remove the driver side trim panel.
3. Hold the fuse head with a fuse extractor, pull and remove the fuse. Check if any fuse is blown.
4. If a fuse is blown, replace it with another fuse of the same ampere value. | Mark No. | Specification | Function | | --- | --- | --- | | F01 | 30A | Rear windscreen heating element | | F02 | 5A | Rearward corner radar, charging port door, Charging State Lamp | | F03 | 15A | Tail lamp assembly | | F04 | 5A | Power tailgate control unit,Trunk Functional Switch Accessory, Electric Vehicle Communication | | | | Controller, Kick Sensor | | --- | --- | --- | | F05 | - | - | | F06 | 5A | Combined charging unit (CCU), electric parking motor control unit | | F07 | 5A | Park And Maneuver Assistance | | F08 | - | - | | F09 | - | - | | F10 | 10A | Intelligent motor control unit,Vehicle Motion Controller | | F11 | 60A | Rear Wheel Steering | | F12 | 25A | Power amplifier | | F13 | 20A | Electric parking motor control unit | | F14 | - | - | | F15 | 25A | Intelligent pilot device | | F16 | 20A | ESS | | F17 | 25A | Suspension Control Module | | F18 | 25A | Electronic oil pump controller | | F19 | 60A | Suspension Control Module | | F20 | 25A | Power tailgate control unit | | F21 | 20A | Tail lamp assembly | | F22 | 10A | High-voltage power distribution unit | | F23 | 25A | Power amplifier | | F24 | - | - | | F25 | 25A | Power tailgate control unit | | F26 | - | - | | F27 | 20A | Trailer Device Module | | --- | --- | --- | | F28 | 20A | Trailer Device Module | | F29 | 15A | Trailer Device Module | | F30 | - | - | | F31 | - | - | | F32 | - | - | | F33 | - | - | | F34 | - | - | | F35 | 10A | Rearview mirrors | | F36 | - | - | | F37 | - | - | | F38 | - | - | | F39 | - | - | | F40 | - | - | | F41 | - | - | | F42 | - | - | | F43 | - | - | | F44 | - | - | | F45 | - | - | | F46 | - | - |
