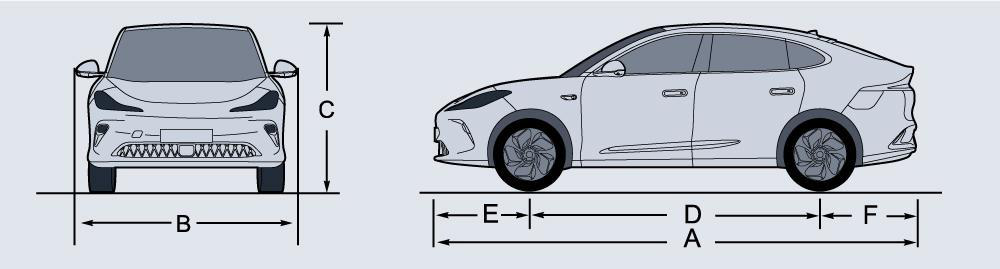

Technical Data Dimensions
Chapter 9 · Manual page 350
| Item | Parameters |
|---|---|
| Overall length A, mm | 4904 |
| Overall width B, mm | 1988 |
| Overall height C (unladen), mm | 1669 |
| Wheelbase D, mm | 2950 |
| Front overhang E, mm | 970 |
| Rear overhang F, mm | 984 |
| Front wheel track, mm | 1698 |
| Rear wheel track, mm | 1707 |
| Minimum ground clearance (laden), mm | 144 |
The vehicle length excludes license plate.
Rearview mirrors and the deformed portion of tyre wall directly above the touchdown point are not included in the overall width.
