High-voltage System Components

Chapter 7 · Manual page 300

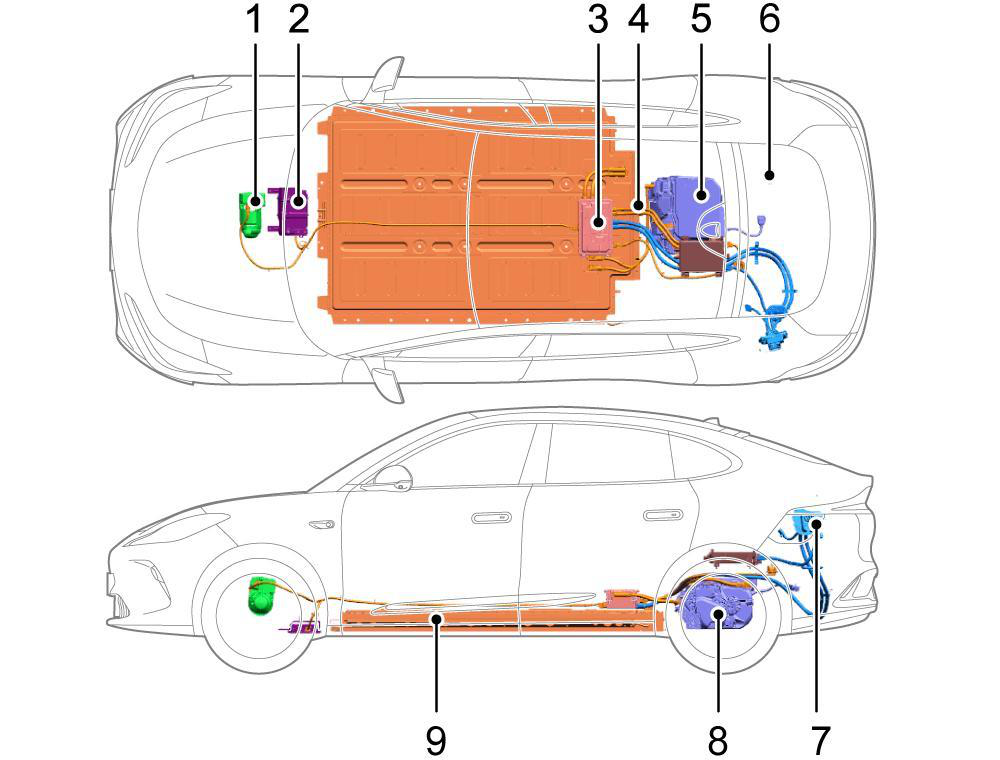

High-voltage System Components - 2WD Diagram showing: Electric A/C compressor, Battery heater, High-voltage power distribution unit, High-voltage harness, Combined charging unit and 4 more

  1. Electric A/C compressor
  2. Battery heater
  3. High-voltage power distribution unit
  4. High-voltage harness
  5. Combined charging unit
  6. Manual service disconnector (MSD)
  7. Charging port
  8. Rear electric drive unit
  9. High-voltage battery pack High-voltage System Components - 4WD Diagram showing: Front electric drive unit, Battery heater, High-voltage power distribution unit, High-voltage harness, Combined charging unit and 5 more
  10. Front electric drive unit
  11. Battery heater
  12. High-voltage power distribution unit
  13. High-voltage harness
  14. Combined charging unit
  15. Manual service disconnector (MSD)
  16. Charging port
  17. Rear electric drive unit
  18. High-voltage battery pack
  19. Electric A/C compressor
