Battery Fuse Box

Chapter 6 · Manual page 297

Fuse Check or Replacement

  1. Turn off the Start switch and all electrical appliances, and disconnect the negative battery cable.
  2. Raise or remove the loadspace floor and battery cover.
  3. To remove these fusible links use a suitable spanner or socket. Check if any fuse is blown.

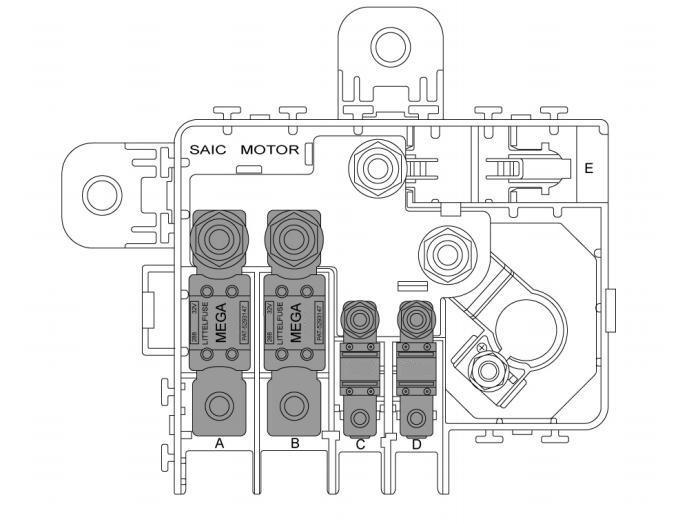

  4. If a fuse is blown, replace it with another fuse of the same ampere value. Illustration: Battery Fuse Box | Mark No. | Specification | Function | | --- | --- | --- | | F1 | 350A | High voltage DC-DC converter | | F2 | 150A | Front compartment fuse box | | F3 | 100A | Passenger compartment fuse box | | F4 | 100A | Trunk fuse box |
