High-voltage System

Chapter 1 · Manual page 10

  • There are two kinds of high voltage power supplies (AC and DC) in the high voltage system. High voltage components are fitted with warning labels, always read and observe any instructions printed on these labels.
  • To avoid personal injury, non-professional maintenance personnel are prohibited from contacting, dismantling or fitting any component of the high-voltage system without permission.

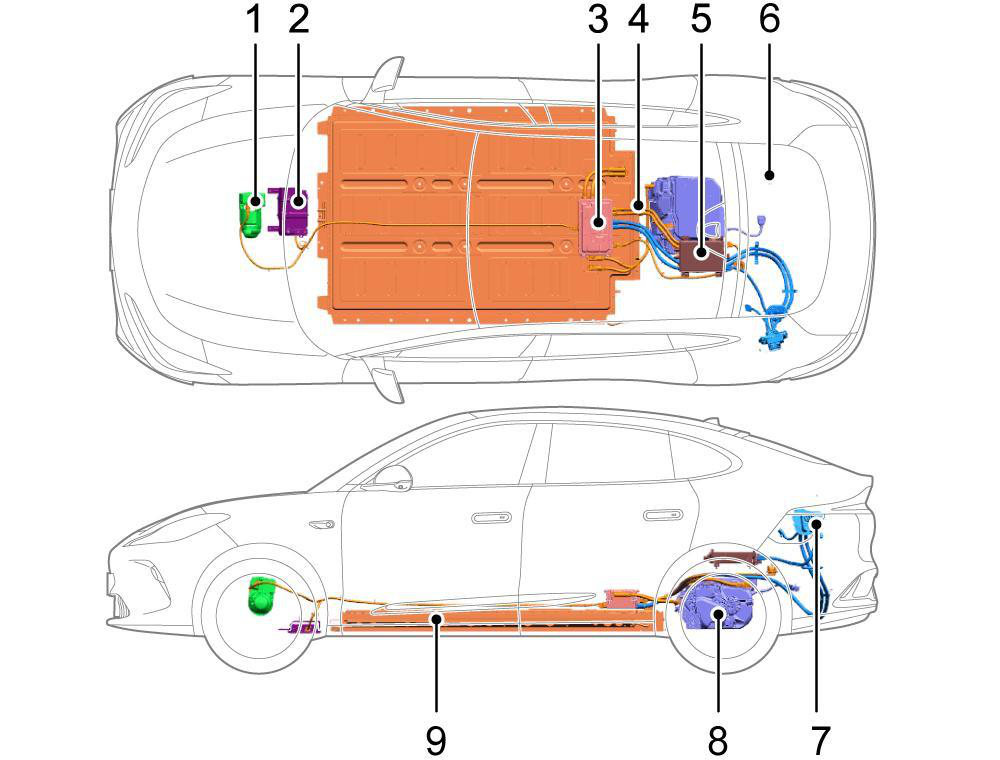

High-voltage system components layout - 2WD Diagram showing: Electric A/C compressor, Battery heater, High-voltage power distribution unit, High-voltage harness, Combined charging unit and 4 more

  1. Electric A/C compressor
  2. Battery heater
  3. High-voltage power distribution unit
  4. High-voltage harness
  5. Combined charging unit
  6. Manual service disconnect device (MSD)
  7. Charging port
  8. Rear electric drive unit

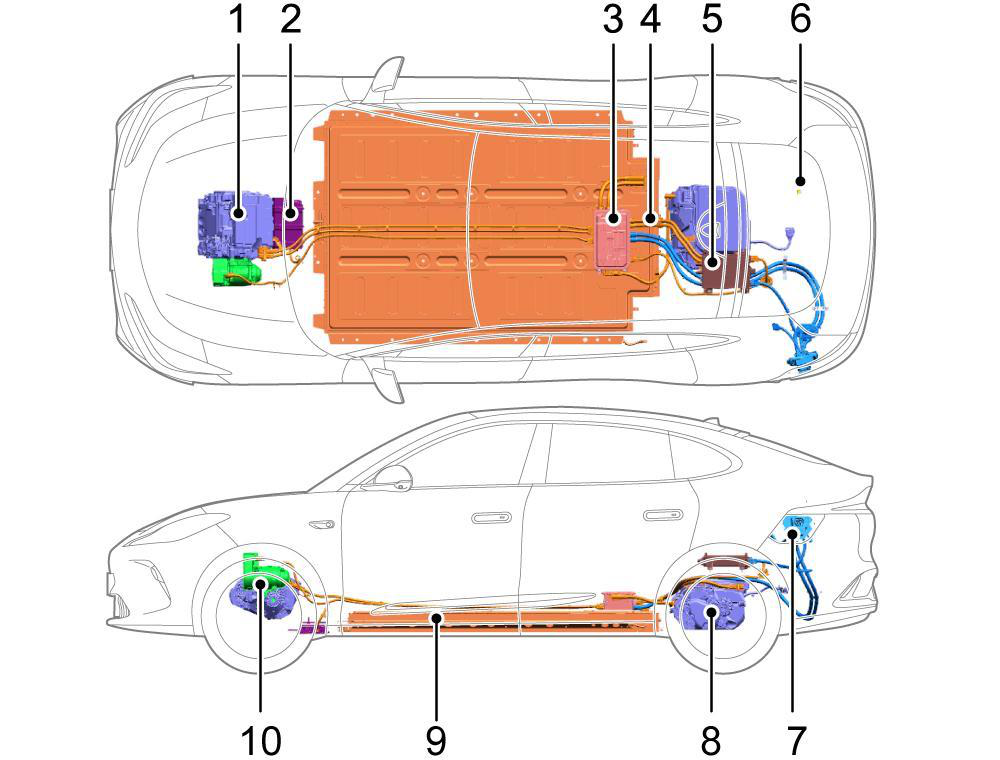

  9. High-voltage battery pack High-voltage system components layout - 4WD Diagram showing: Front electric drive unit, Battery heater, High-voltage power distribution unit, High-voltage harness, Combined charging unit and 5 more
  10. Front electric drive unit
  11. Battery heater
  12. High-voltage power distribution unit
  13. High-voltage harness
  14. Combined charging unit
  15. Manual service disconnect device (MSD)
  16. Charging port
  17. Rear electric drive unit
  18. High-voltage battery pack
  19. Electric A/C compressor
