Vehicle Transport

Chapter 6 · Manual page 277

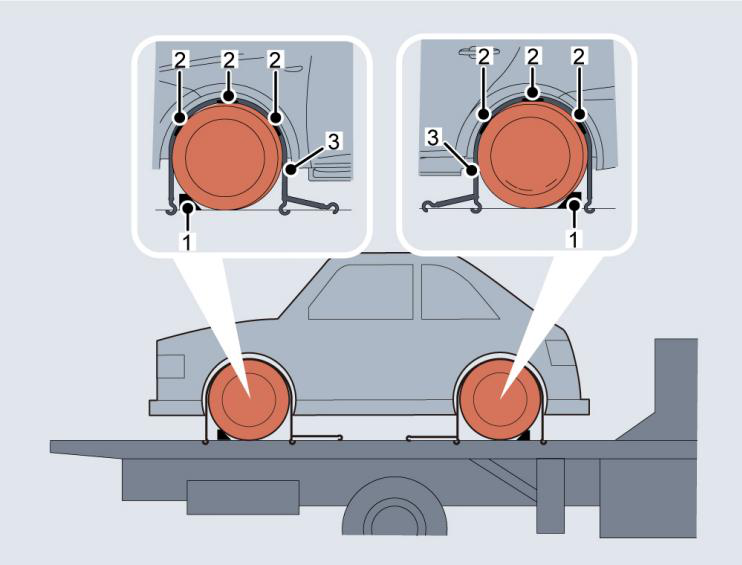

If your vehicle needs to be transported, a special transporter is recommended. Secure the vehicle on the transporter as follows: Diagram showing: Before transporting the vehicle, make sure that the electronic parking brake system (EPB) is enabled. Refer to "Electronic Parking Brake System (EPB)" in "Braking and Parking" chapter for details., Place the wheel chocks (1) as shown in the figure, and then position the anti-slip rubber blocks (2) around the wheel., Fit the lashing straps (3) around the wheels and secure them on the trailer. Fasten the straps to secure the vehicle.

  1. Before transporting the vehicle, make sure that the electronic parking brake system (EPB) is enabled. Refer to “Electronic Parking Brake System (EPB)” in “Braking and Parking” chapter for details.
  2. Place the wheel chocks (1) as shown in the figure, and then position the anti-slip rubber blocks (2) around the wheel.
  3. Fit the lashing straps (3) around the wheels and secure them on the trailer. Fasten the straps to secure the vehicle.
