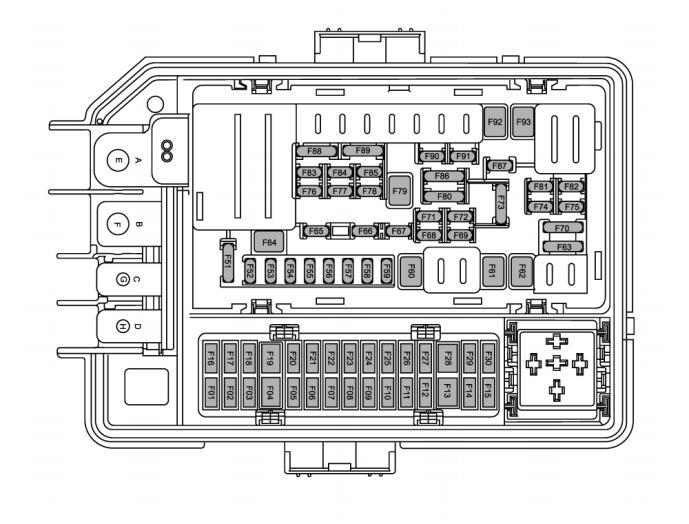

Front Compartment Fuse Box

Fuse Check or Replacement

1. Turn off the Start switch and all electrical appliances, and disconnect the negative battery cable.
2. Remove the front compartment trim cover, and open the upper cover of the fuse box.
3. Hold the fuse head with a fuse extractor, pull and remove the fuse. Check if any fuse is blown.
4. If a fuse is blown, replace it with another fuse of the same ampere value. | Mark
   No. | Specification | Function | | --- | --- | --- | | A | - | - | | B | - | - | | C | 100A | Electric power steering control module | | D | - | - | | E | - | - | | F | - | - | | --- | --- | --- | | G | 60A | Cooling fan | | H | 60A | Integrated braking system (IBS) | | F01 | - | - | | F02 | - | - | | F03 | - | - | | F04 | - | - | | F05 | - | - | | F06 | 5A | Electronic control water valve, multi-way valve of cooling system | | F07 | - | - | | F08 | - | - | | F09 | 15A | HVPTC water pump | | F10 | 20A | Power electronic box cooling water pump | | F11 | - | - | | F12 | - | - | | F13 | - | - | | F14 | 15A | High-voltage battery pack cooling water pump | | F15 | - | - | | F16 | 10A | Front left All Weather Lamp | | F17 | - | - | | F18 | - | - | | F19 | - | - | | F20 | - | - | | F21 | - | - | | --- | --- | --- | | F22 | - | - | | F23 | 10A | Front right All Weather Lamp | | F24 | - | - | | F25 | - | - | | F26 | - | - | | F27 | - | - | | F28 | - | - | | F29 | - | - | | F30 | - | - | | F31 | - | - | | F32 | - | - | | F33 | - | - | | F34 | - | - | | F35 | - | - | | F36 | - | - | | F37 | - | - | | F38 | - | - | | F39 | - | - | | F40 | - | - | | F41 | - | - | | F42 | - | - | | F43 | - | - | | F44 | - | - | | --- | --- | --- | | F45 | - | - | | F46 | - | - | | F47 | - | - | | F48 | - | - | | F49 | - | - | | F50 | - | - | | F51 | 15A | Horn relay, clock spring | | F52 | 5A | Active intake grille | | F53 | 20A | Front left Light Processing assembly | | F54 | 30A | Body control module | | F55 | 30A | Body control module | | F56 | 5A | Front Detection Radar | | F57 | - | - | | F58 | 30A | Body control module | | F59 | - | - | | F60 | - | - | | F61 | 40A | Integrated braking system (IBS) | | F62 | 30A | Right front door control unit, right rear door control unit | | F63 | 5A | Sensing and diagnostic module, intelligent pilot device (IPD), intelligent cockpit, shifter control unit, body
   control module | | F64 | 30A | Body control module | | F65 | - | - | | F66 | - | - | | F67 | 15A | Front left Light Processing assembly | | --- | --- | --- | | F68 | - | - | | F69 | 30A | Body control module | | F70 | 5A | Integrated braking system, electric power steering control module,
   high-voltage battery pack system, inertial measurement unit,
   intelligent motor control unit, secondary axle motor controller | | F71 | 15A | Front right Light Processing assembly | | F72 | 20A | Front right Light Processing assembly | | F73 | 5A | Brake pedal switch | | F74 | - | - | | F75 | - | - | | F76 | - | - | | F77 | - | - | | F78 | - | - | | F79 | - | - | | F80 | 10A | Secondary axle motor controller | | F81 | - | - | | F82 | - | - | | F83 | - | - | | F84 | - | - | | F85 | 15A | Front windscreen washer relay, body control module | | F86 | 15A | Automatic temperature control | | F87 | - | - | | F88 | 5A | Electric air conditioning compressor, HV battery pack electric heater | | F89 | 5A | Air quality sensor, driver seat backrest ventilation element,
   front passenger seat cushion ventilation element | | --- | --- | --- | | F90 | - | - | | F91 | 30A | Body control module | | F92 | 25A | Electronic wiper mechanism | | F93 | 30A | Front left door control unit, rear left door control unit |
