Seat Adjustment and Relevant Functions

Chapter 4 · Manual page 161

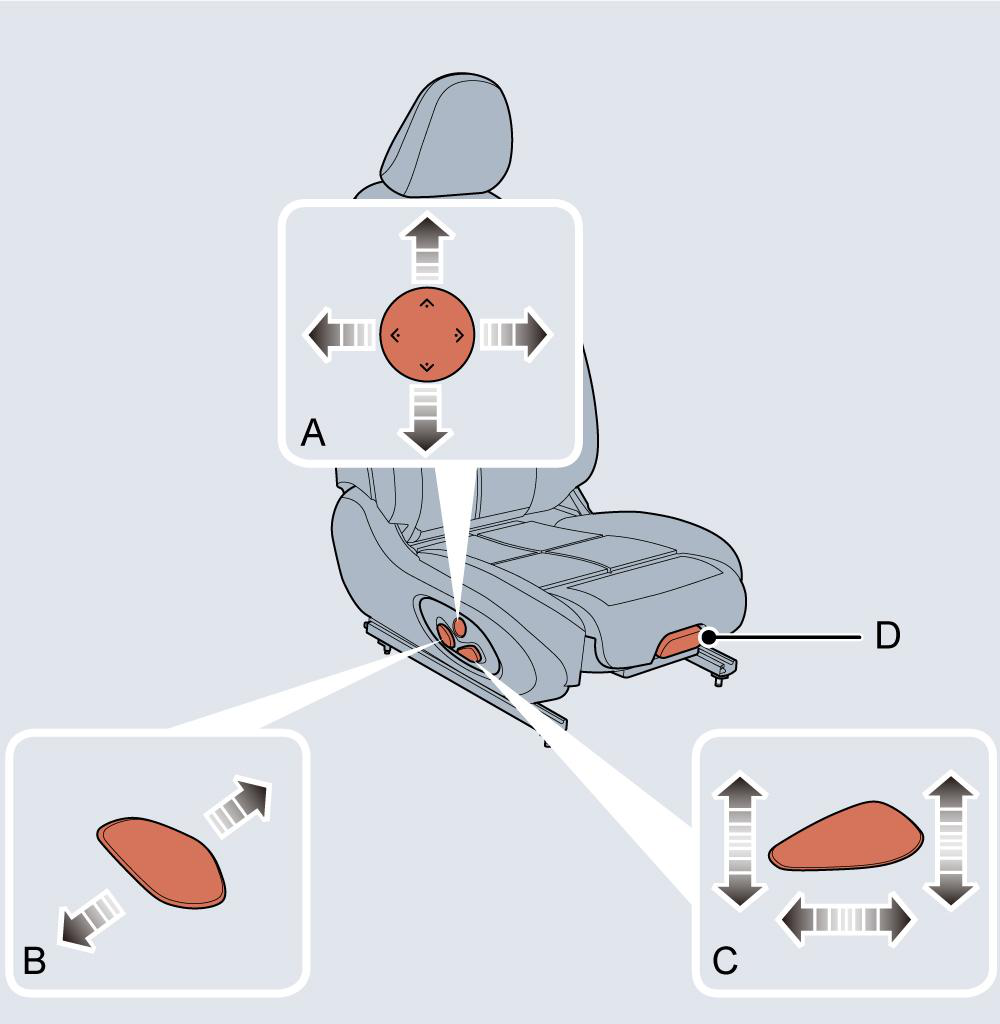

The user can adjust the front seat by operating the buttons on the exterior trim panel of the seat. The front seat can be also adjusted by operating the relevant interfaces on the central screen. The heating and ventilation functions of the seat can only be enabled after the vehicle is powered on, and the heating and ventilation functions of the seat cannot be enabled at the same time. Front Seat Adjustment Warning: When adjusting the front seat, take care not to get your hands or feet caught in moving parts. Example (Driver Seat): Illustration: Seat Adjustment and Relevant Functions

  • Lumbar support adjustment To adjust the lumbar support, long press the button in the required direction (A).
  • Backrest angle adjustment To adjust the seat backrest angle, push the button in the required direction (B).
  • Forward/rearward adjustment To adjust the forward/rearward position, push the button forwards or rearwards (C).
  • Cushion angle adjustment* To adjust the cushion angle, push the front of the button upward and downward(C).
  • Seat height adjustment To adjust the seat height, push the rear end of the button up or down (C).
  • Seat leg rest adjustment While pulling the unlocking handle (D) outward, push the leg rest inward or outward and release the handle after adjusting the thigh leg rest to the desired position. Rear seat adjustment Warning: When adjusting the rear seat, take care not to get your hands or feet caught in moving parts. Illustration: Seat Adjustment and Relevant Functions Folding of Rear Seats: The rear seat backrests can be fully folded forward to provide larger rear space. Before folding the backrest, please adjust the headrest to the lowest position. Pull up the control handle respectively on both sides to fold the seat backs forward. To unfold the backrest to the upright position, pull up the control handle on both sides to unfold the rear seat backs upward to the rearmost position until a “click” sound is heard, which indicates complete unfolding.

Before folding the rear seats, please ensure that the rear seats are not occupied or there are no items on the seat cushions.

When the driver seat backrest is inclined backward excessively, the folding of the rear seat backrest is very likely to damage the back of the front seat or the rear seat headrest.

When returning the rear seat backrest to the desired position, make sure that the rear seat belt is not trapped.

Seat Heating

If bare skin is in contact with the heated seats for excessive periods of time, it may cause low temperature burns.

Both the front and rear seats have seat heating. The user can enable, disable or adjust the corresponding seat heating function on the central screen. The heating function has a total of three levels of adjustable intensity.

When the high level of seat heating intensity is used for a long time, the system will automatically reduce its level.

  • Do not cover the heated seats with blankets, cushions or other insulation type objects or materials.
  • If the seat is heated to the preset temperature but continues getting hotter, please turn off the switch and contact an After-sales Repairer for inspection and service.
  • Overuse of the heated driver seat may cause drowsiness and could affect safe driving. Front Seat Ventilation The front seat backrest of the entire vehicle family has a ventilation function. The user can enable, disable or adjust the corresponding seat ventilation function on the central screen. The ventilation function has a total of three levels of adjustable intensity.
