Passenger Compartment Fuse Box

Chapter 6 · Manual page 290

Fuse Check or Replacement

  1. Turn off the Start switch and all electrical appliances, and disconnect the negative battery cable.
  2. Remove the driver side trim panel.
  3. Hold the fuse head with a fuse extractor, pull and remove the fuse. Check if any fuse is blown.

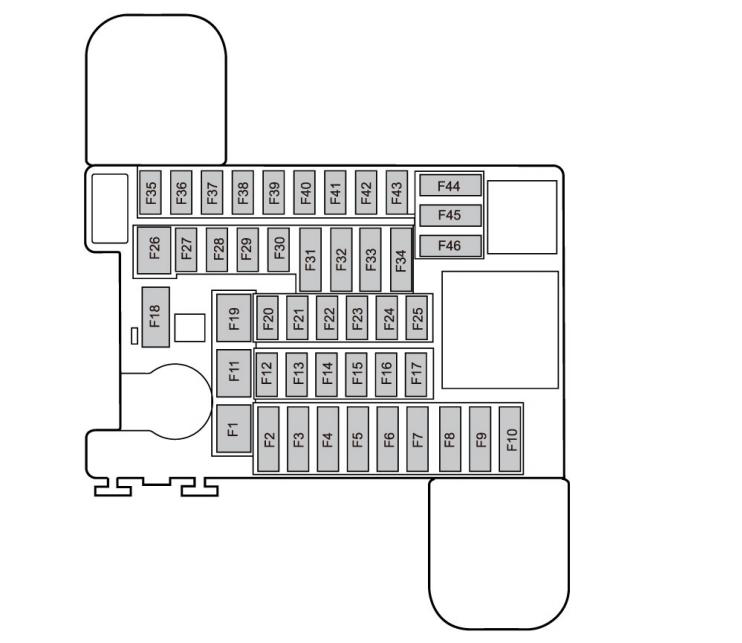

  4. If a fuse is blown, replace it with another fuse of the same ampere value. Illustration: Passenger Compartment Fuse Box | Mark
    No. | Specification | Function | | --- | --- | --- | | F1 | 30A | Front blower | | F2 | 7.5A | Seat adjustment switch,
